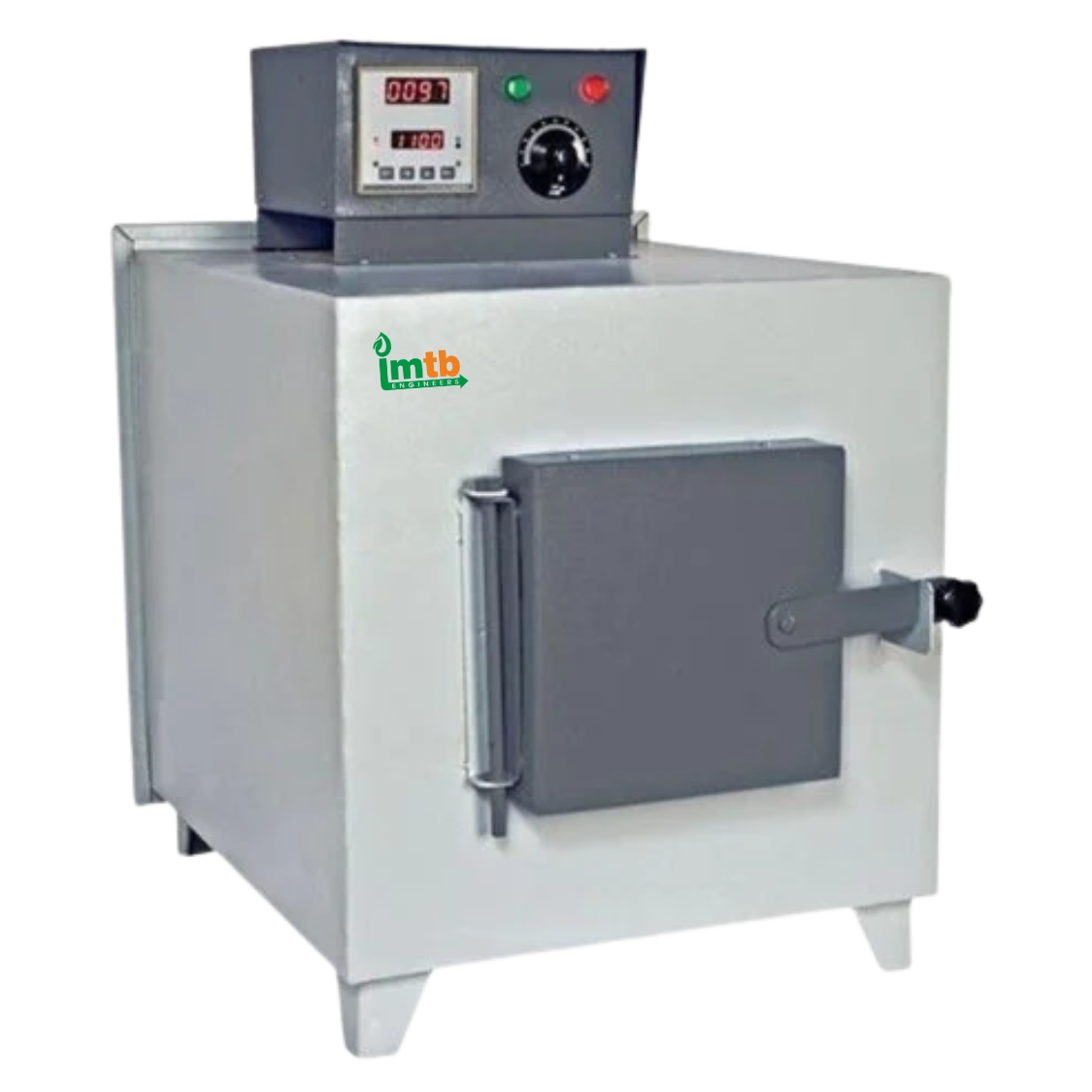

Key Features:
- High Temperature Capability: Temperature range up to 1000 °C / 1200 °C / 1400 °C (model dependent).
- Uniform Heating: High-quality heating elements and ceramic insulation for stable chamber conditions.
- Durable Construction: Stainless steel exterior with powder coating and high-alumina refractory insulation.
- Accurate Control: Microprocessor-based PID digital temperature controller with LED/LCD display.
- Safe Operation: Double-walled body with efficient insulation to minimize heat loss and maintain safe outer surface temperature.
- User Convenience: Fast heating, low power consumption, and long service life.
- Versatile Applications: Ideal for ashing, loss on ignition (LOI), annealing, ceramics, glass, and material testing.
- Optional Accessories: Programmable temperature controller, ceramic plates, exhaust system, or data logging facility.
Technical Specifications:
| Category |
Muffle Furnace |
| Type |
Laboratory High-Temperature Furnace |
| Temperature Range |
Up to 1000 °C / 1200 °C / 1400 °C (model dependent) |
| Temperature Accuracy |
±1 °C |
| Temperature Uniformity |
±2–3 °C |
| Controller |
Microprocessor-based digital PID controller with LED/LCD display |
| Inner Chamber Material |
High-grade ceramic / refractory |
| Outer Body |
Stainless steel, powder-coated |
| Insulation |
High-alumina refractory with ceramic fiber insulation |
| Heating Elements |
High-quality Kanthal / Silicon Carbide rods (model dependent) |
| Capacity |
2, 5, 10, 20 liters (or as required) |
| Door Type |
Front-loading, insulated, with safety lock |
| Safety Features |
Over-temperature protection, power cut-off on door opening |
| Power Supply |
220–230 V AC, 50 Hz (single phase) / 440 V AC, 3 phase (for larger models) |
| Accessories |
Ceramic tray/plate, exhaust port (optional), instruction manual |
| Certifications |
ISO certified, IEC electrical safety compliant |
